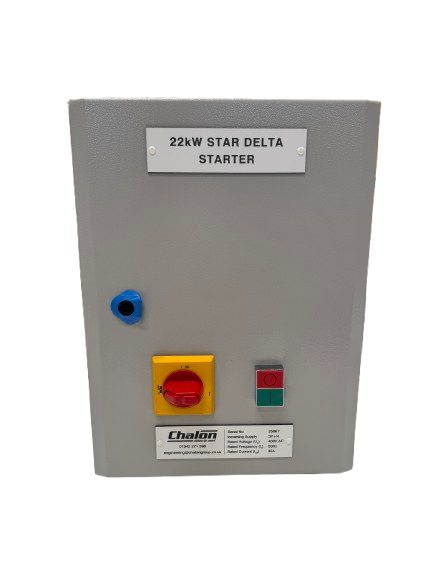

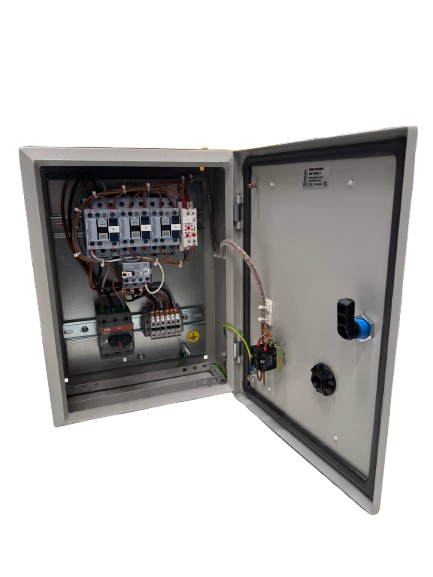

Wall mounted sheet steel enclosure approximately 400mmH x 300mmW x 150mmD, IP66 Rated and finished to RAL 7035. This enclosure will be fitted with a top & bottom gland plate and be equipped with the following:
1 x ABB 3-Pole mains isolator to suit selected motor size
1 x ABB isolator shaft and door interlocked operating handle
3 x WEG CWB Contactors with 400v coil
1 x WEG Contactor mechanical interlock
1 x WEG 22-32A Overload
1 x 400v GIC Star delta timer
1 x Red and green combination start stop pushbutton
1 x set of Mains outgoing terminals
1 x set of cables and labels
1 x set of electrical schematics
